OUTSIDE HULL PAINTING LOGO STICKER DECK RUBBER FENCE BOW EYES CLEAT STORAGE/BOW STORAGE/STERN STORAGE/STERN (for fuel tank) LIVE WELL PUMP AERATOR FOR LIVE WELL GRAY 1 SET FULL CARPET 12m 3PCS, 1/BOW &2PCS/TRANSOM 4PCS 3PCS, ALL W/LOCK CATCH &INSIDE CARPETED 2PCS, WITH STORAGE BOX 1PC, INSIDE CARPETED 1PC 1 SET, 800 GPH/SEA FLOW
TECHNICAL DATA
Including
LENGTH/BEAM HEIGHT/HANG UP HEIGHT WEIGHT, BOAT ONLY PERSONS MAX. ENGINE POWER MAX. ENGINE WEIGHT MAX LOAD MAX. BOTTOM THICKNESS SIDE THICKNESS TRANSOM THICKNESS CE CATEGORY

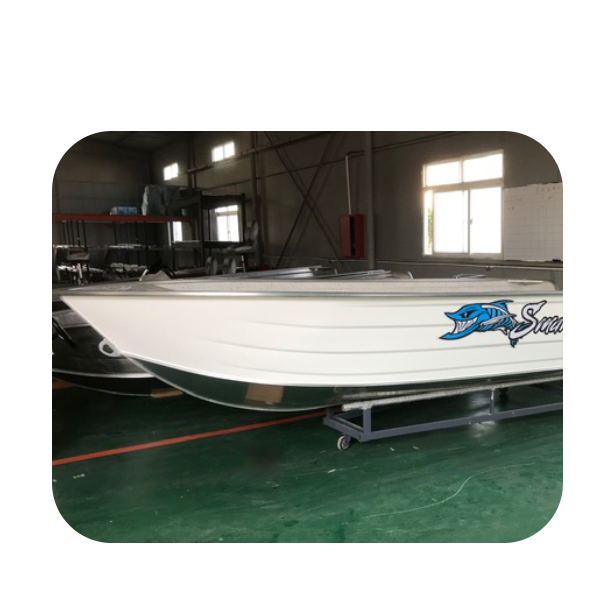

Epoxy Painted
Bending Machine All Welded

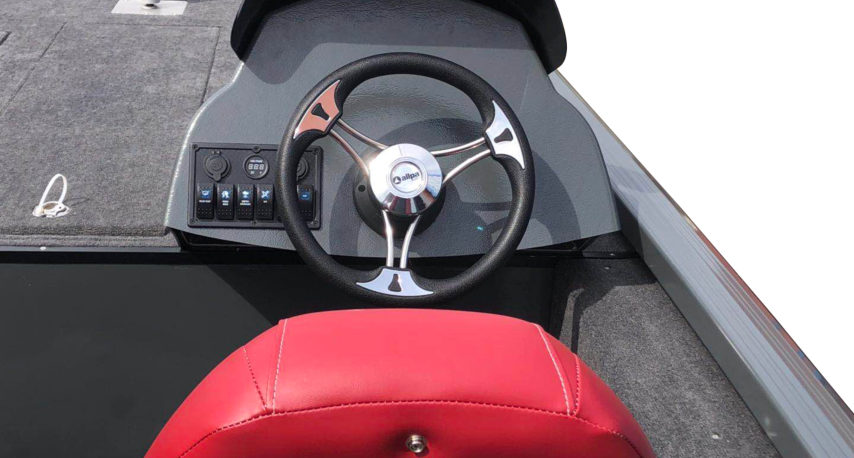

AUTO BILGE PUMP ACCESS PLATE/BOW PE PLATE/TRANSOM DRAIN PLUG SIDE CONSOLE 6-GANG SWITCH PANEL PILOT SEAT PASSENGER SEAT BICYCLE SEAT SQUARE BASE/STERN STEERING WHEEL
1 SET, 1100 GPH/SEA FLOW 1 SET W/ SCREWS 1PC 1PC, PLASTIC WIND SHIELD & ABS CONSOLE 1PC, with USB SOCKET 1PC, FOLDABLE 2PCS, FOLDABLE, ONE REGULARSIZE + ANOTHER SMALLER/LOWER
1 SET, INCLUDING KING PIN & SQUARE BASE
1PC EXTRA STEERING SYSTEM Teleflex™

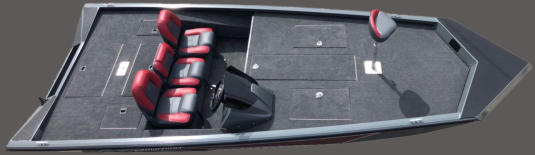

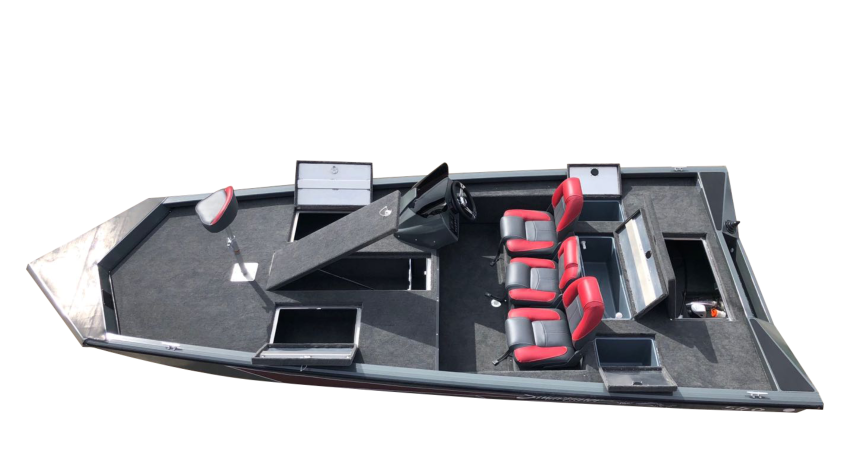

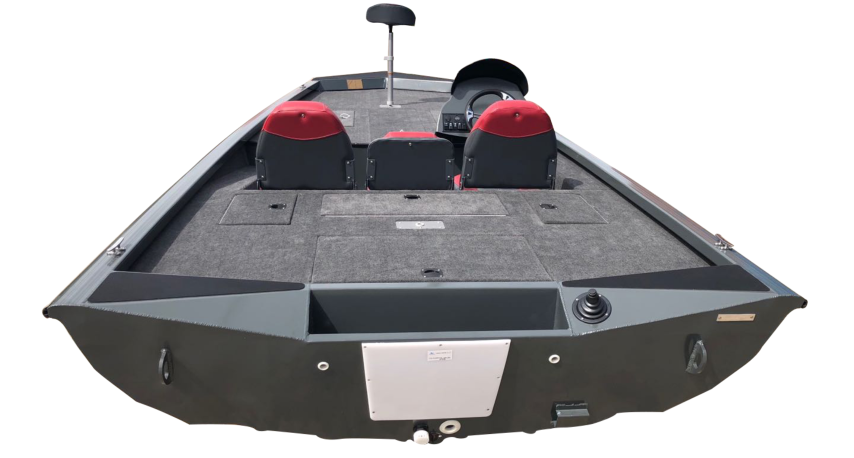

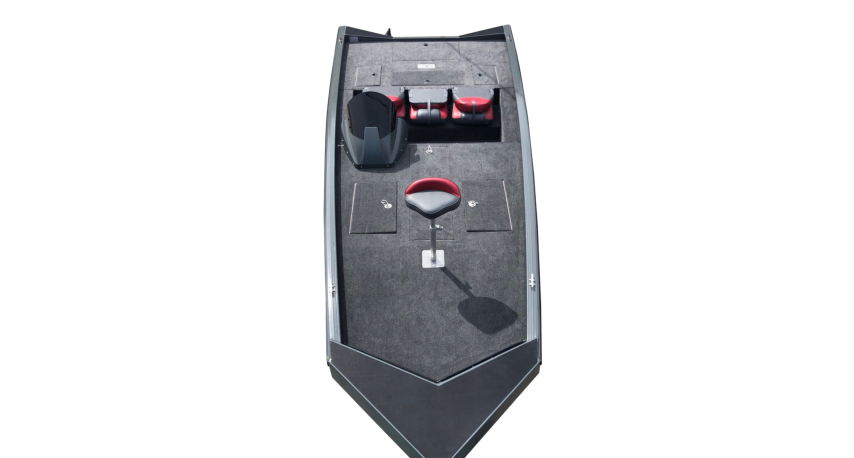

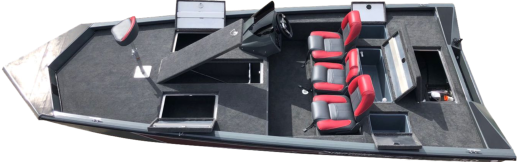

SMARTLINER BASS BOAT 540 is an outstanding all-welded aluminum fishing boat, no rivets, no plywood. Extra large fishing platform with marine grade carpet UV resistant and spacious storage. Comfort on board is optimal with the marine grade carpet UV resistant. Engine up to 115 HP with the Teleflex steering system provides easy driving. Boat has excellent static performance and carries CE homologation for 5 persons in D category Delivered with all accessories as detailed in the technical data sheet – hull color in supplement.
Additional Photos

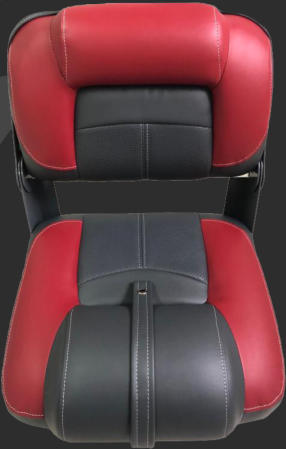

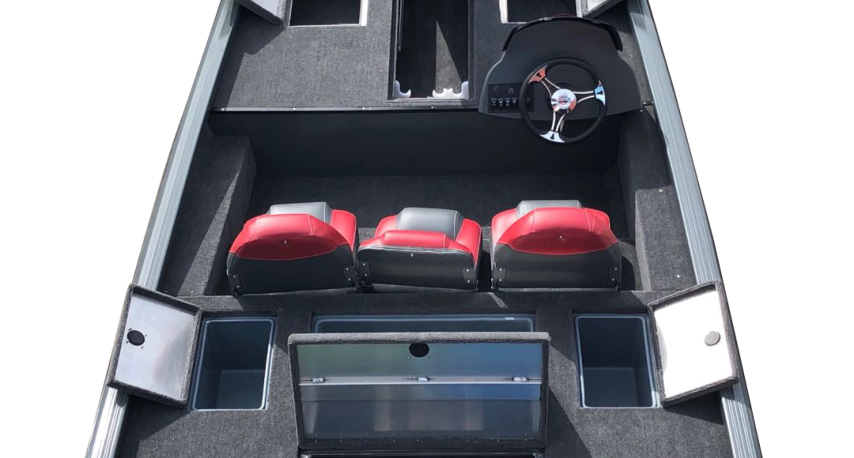

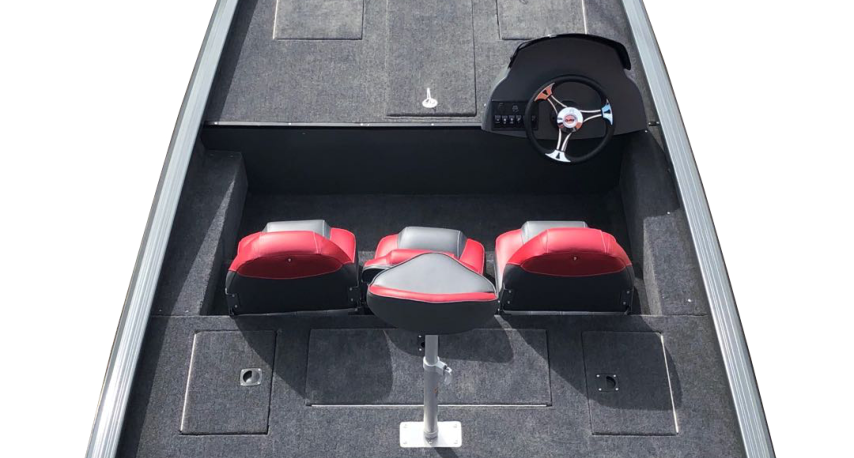

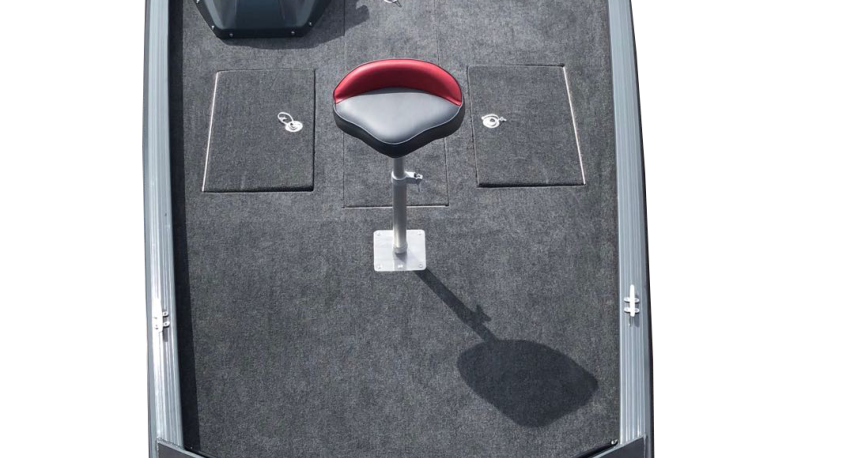

High quality chair

Accessories

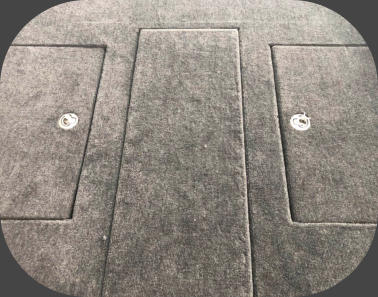

Storages

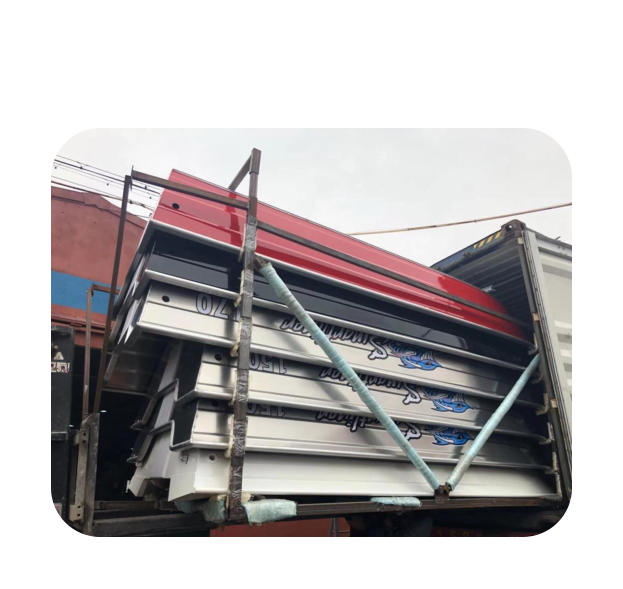

Careful Packaging
Maximum load
590kg

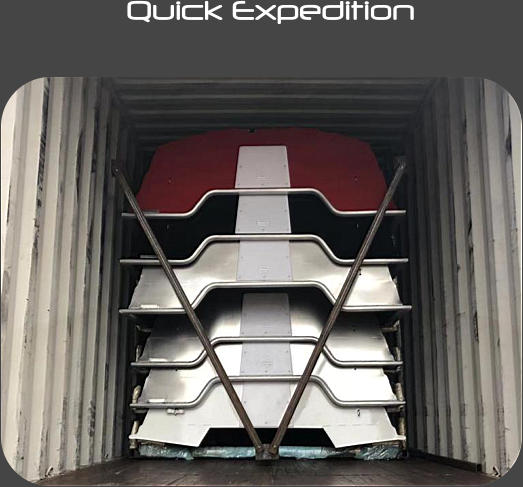

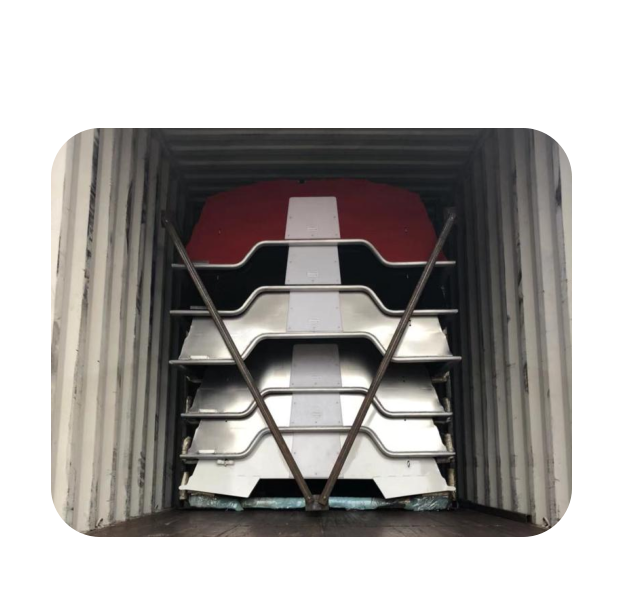

Quick Expedition

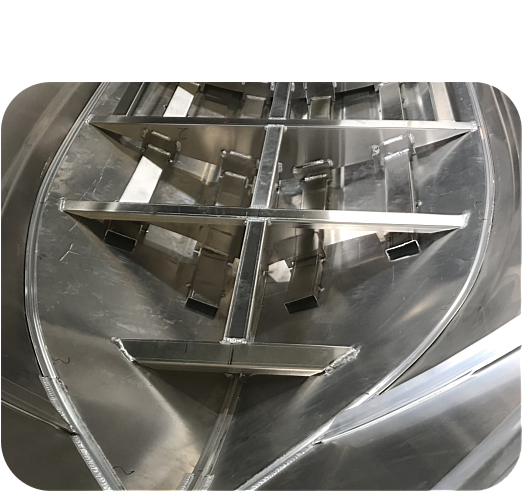

Plasma Cutter Precision Molding Line Moulds Line of production Stringers

Download HD Image

CONTACT US

L E A F L E T

Aluminium

Download

5.4m/2.2m 0.69m/0.51m 468 kg 5 (L) 115HP/84.6kw 165 kg 900kg 3mm 3mm 3mm D
NAVIGATION
Head Quarter ARVOR TRADING S.A. PORT VALAIS Chemin du Culat 34B 1897 LE BOUVERET SWITZERLAND
Made by DRD-ELECTRONIC
SOCIAL
CONTACT US

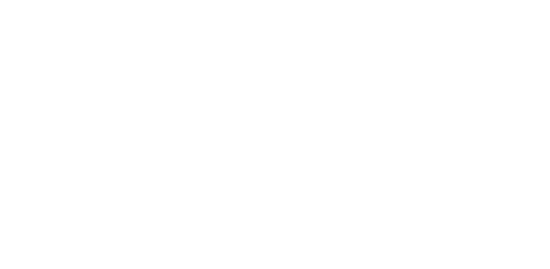

OUTSIDE HULL PAINTING LOGO STICKER DECK RUBBER FENCE BOW EYES CLEAT STORAGE/BOW STORAGE/STERN STORAGE/STERN (for fuel tank) LIVE WELL PUMP AERATOR FOR LIVE WELL GRAY 1 SET FULL CARPET 12m 3PCS, 1/BOW &2PCS/TRANSOM 4PCS 3PCS, ALL W/LOCK CATCH &INSIDE CARPETED 2PCS, WITH STORAGE BOX 1PC, INSIDE CARPETED 1PC 1 SET, 800 GPH/SEA FLOW
TECHNICAL DATA
Including
LENGTH/BEAM HEIGHT/HANG UP HEIGHT WEIGHT, BOAT ONLY PERSONS MAX. ENGINE POWER MAX. LOAD MAX. BOTTOM THICKNESS SIDE THICKNESS TRANSOM THICKNESS CATEGORY Date: 20 FEB 2019 AUTO BILGE PUMP ACCESS PLATE/BOW PE PLATE/TRANSOM DRAIN PLUG SIDE CONSOLE 6-GANG SWITCH PANEL PILOT SEAT PASSENGER SEAT BICYCLE SEAT SQUARE BASE/STERN STEERING WHEEL 1 SET, 1100 GPH/SEA FLOW 1 SET W/ SCREWS 1PC 1PC, PLASTIC WIND SHIELD & ABS CONSOLE 1PC, with USB SOCKET 1PC, FOLDABLE 2PCS, FOLDABLE, ONE REGULARSIZE + ANOTHER SMALLER/LOWER 1 SET, INCLUDING KING PIN & SQUARE BASE 1PC EXTRA STEERING SYSTEM Teleflex™

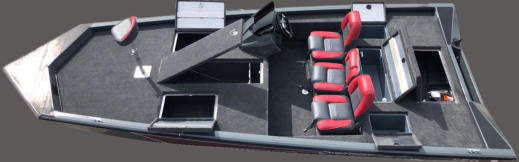

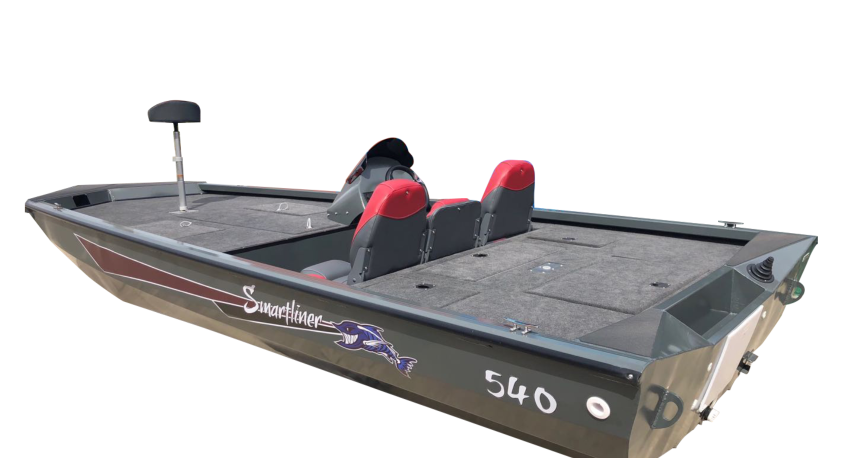

BASS 540

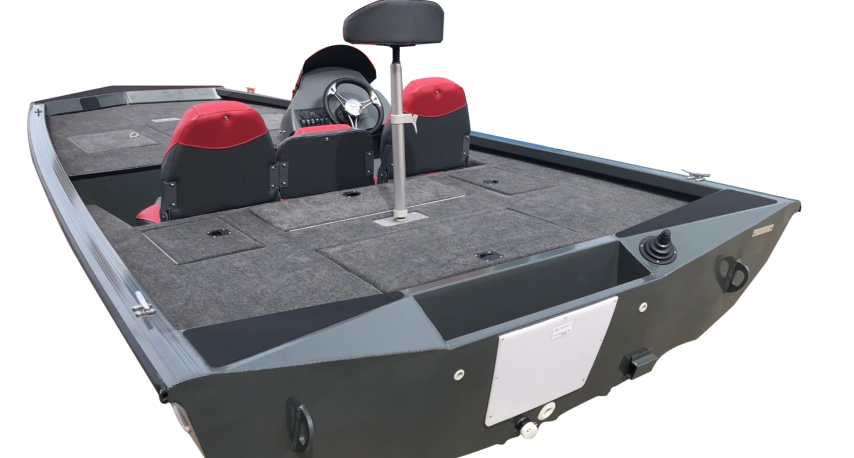

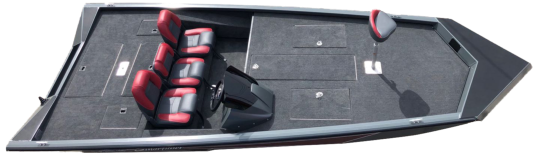

SMARTLINER BASS BOAT 540 is an outstanding all-welded aluminum fishing boat, no rivets, no plywood.

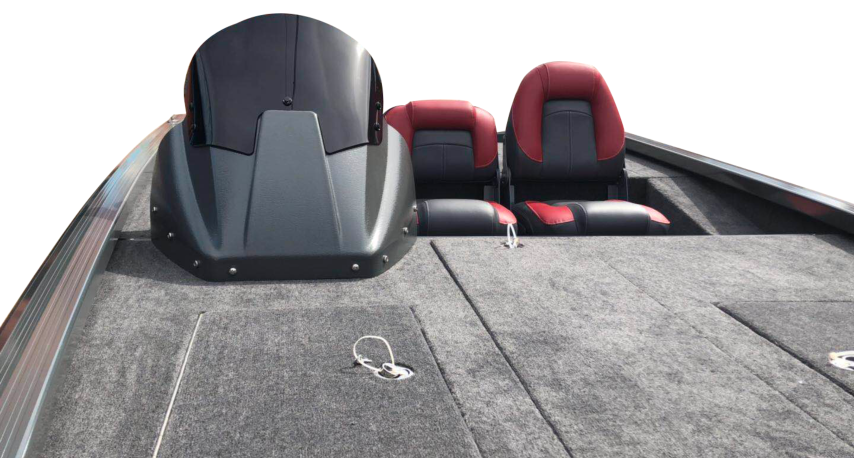

Extra large fishing platform with marine grade carpet UV resistant and spacious storage. Comfort on board is optimal with the marine grade carpet UV resistant.
Engine up to 115 HP with the Teleflex steering system provides easy driving.
Boat has excellent static performance and carries CE homologation for 5 persons in D category
Delivered with all accessories as detailed in the technical data sheet – hull color in supplement.
Maximum load
540 kg
Additional Photos

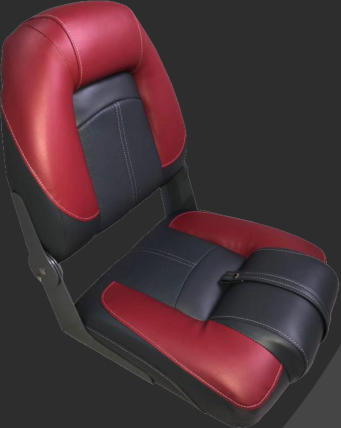

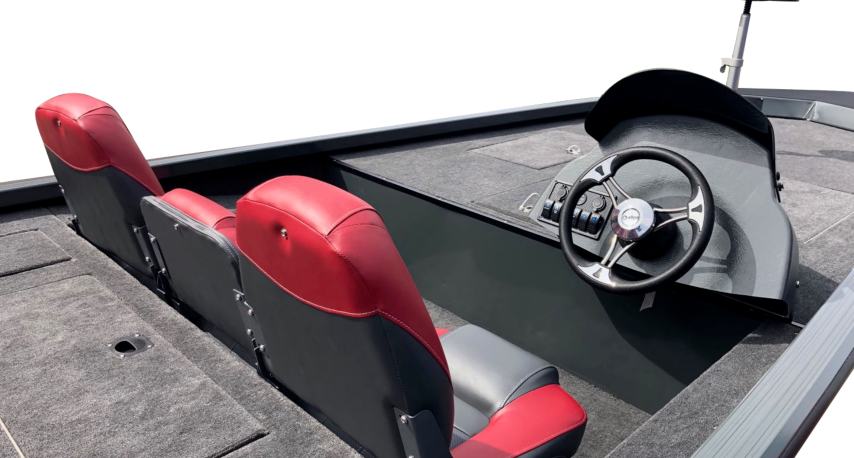

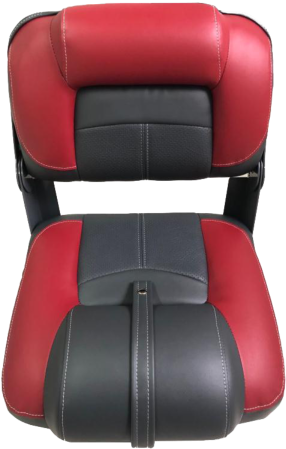

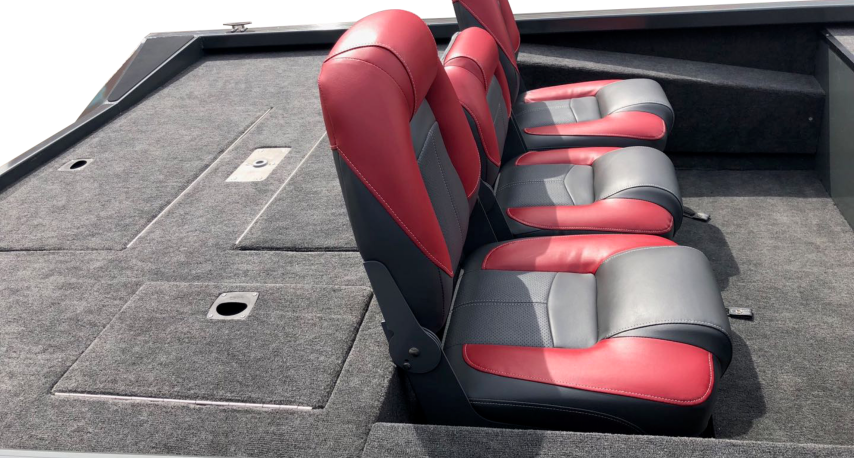

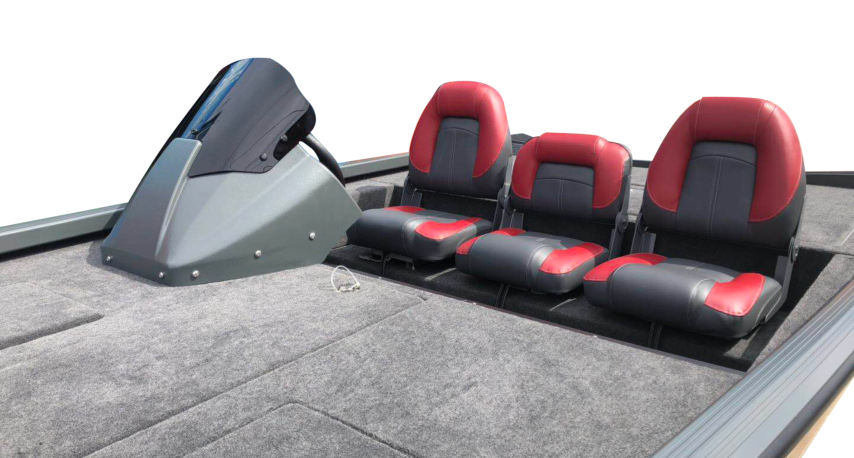

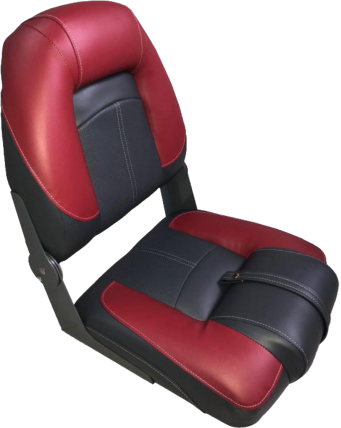

High quality chair

Accessories

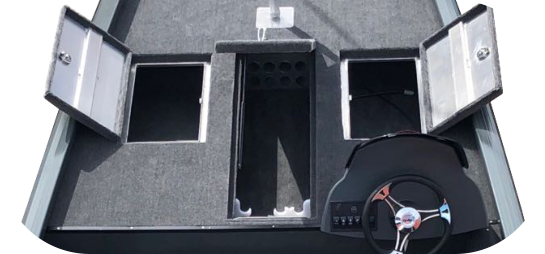

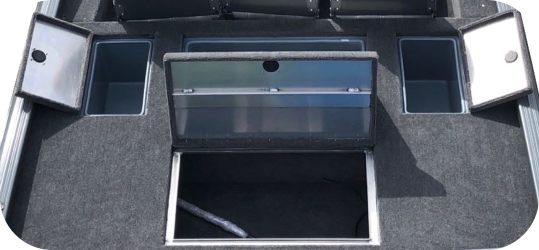

Storages

Download HD Image

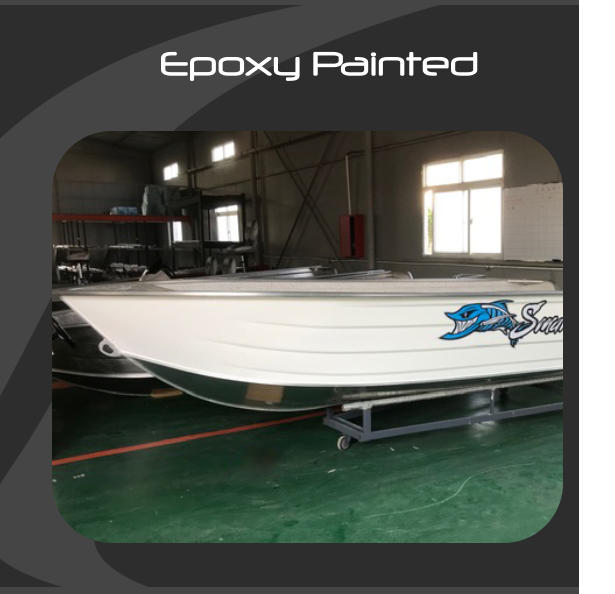

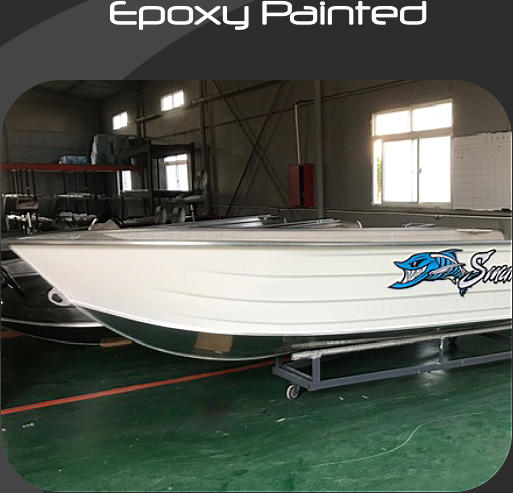

Epoxy Painted

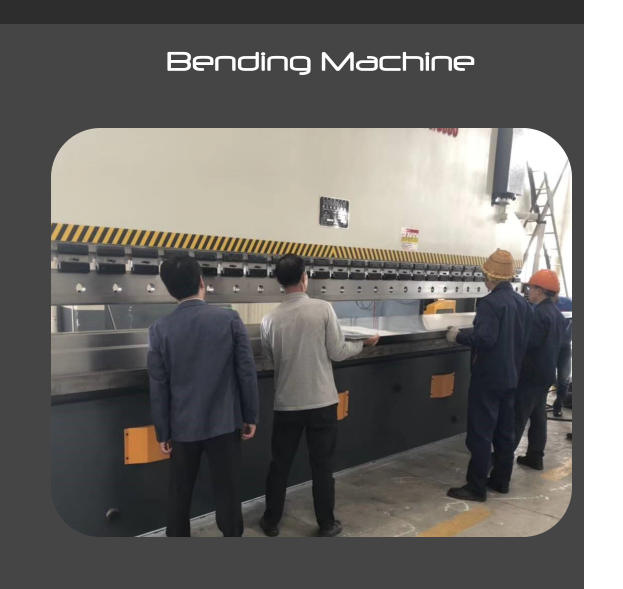

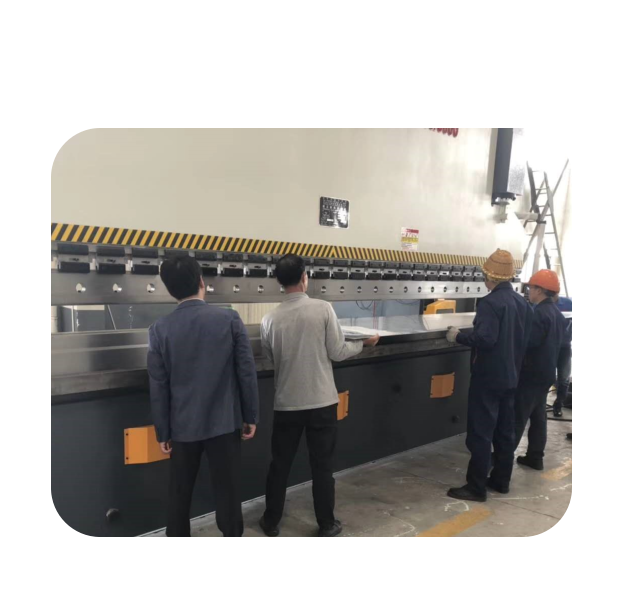

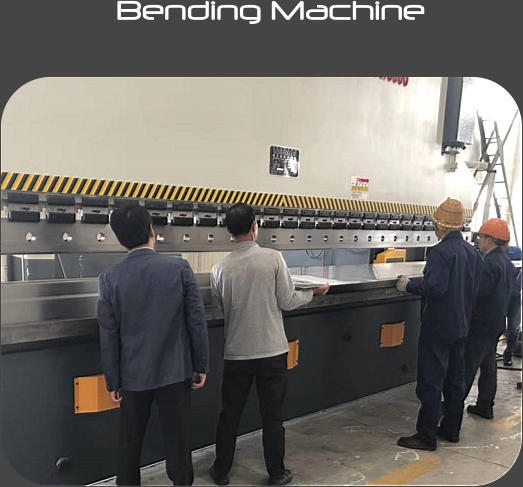

Bending Machine

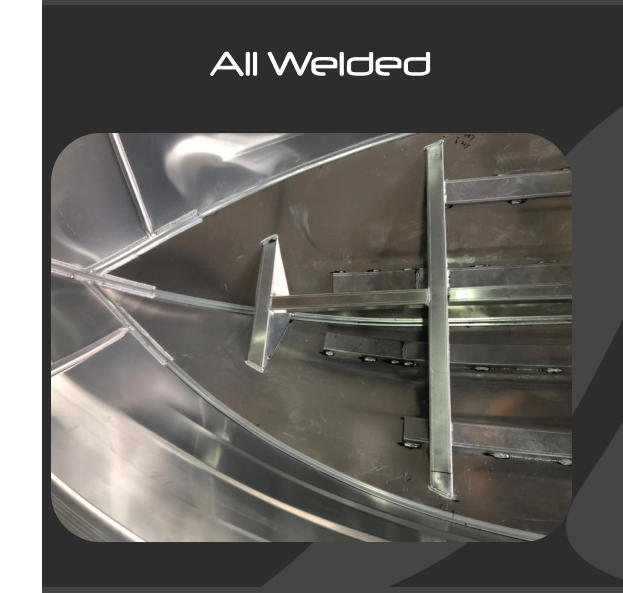

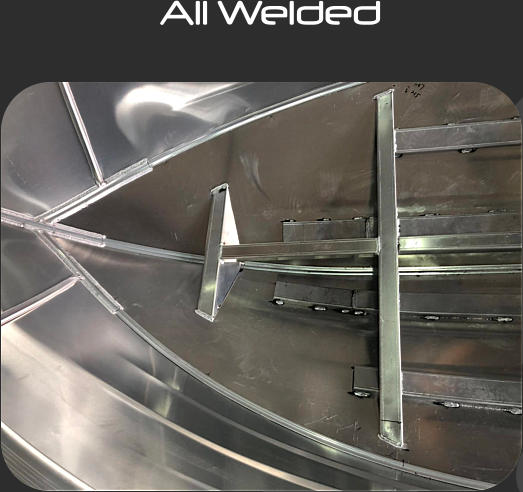

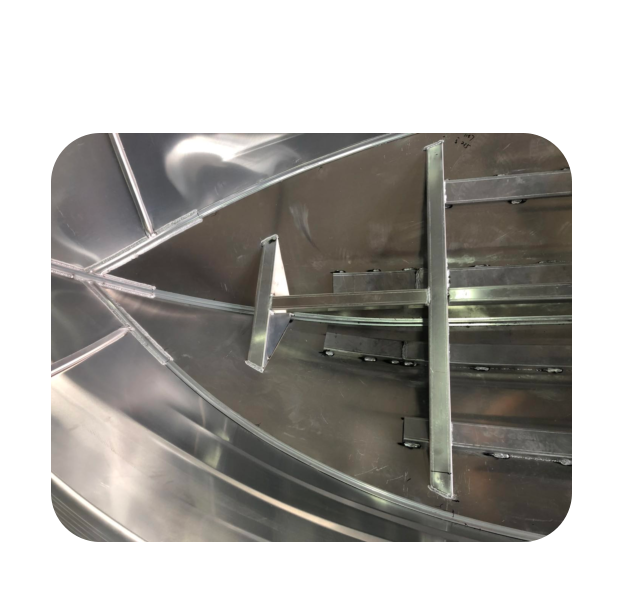

All Welded

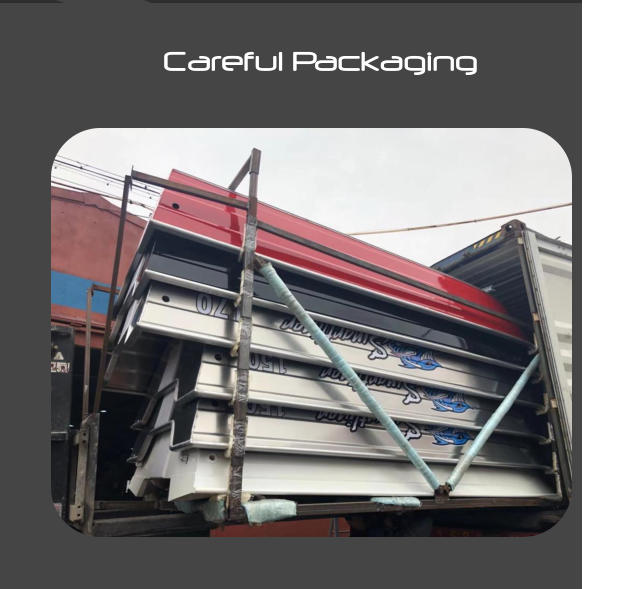

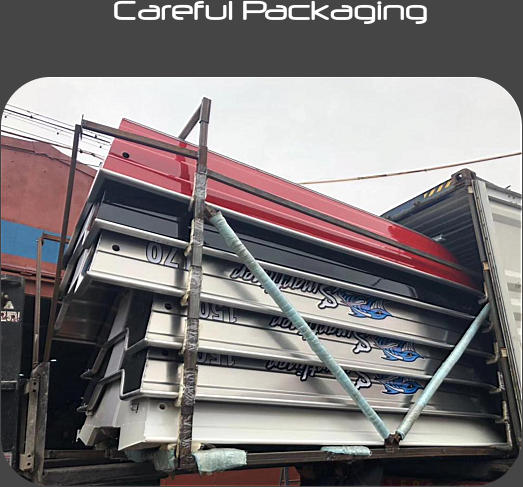

Careful Packaging

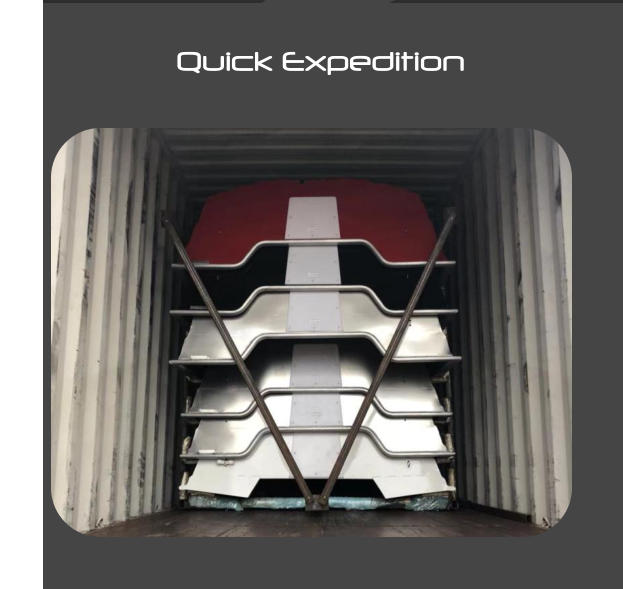

Quick Expedition

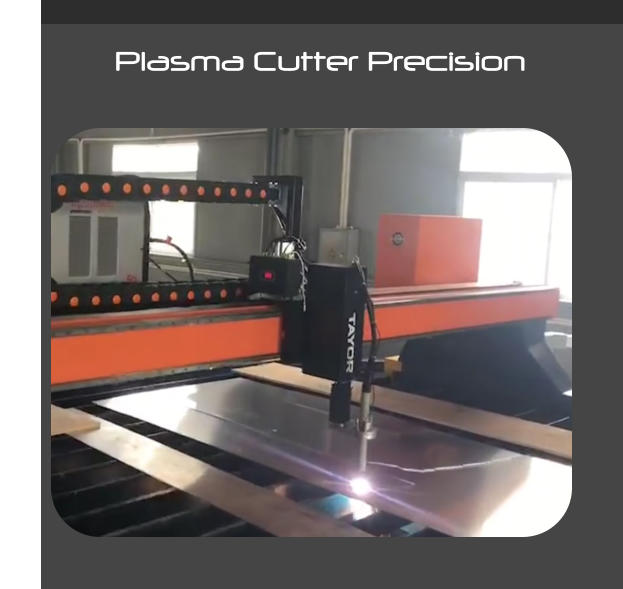

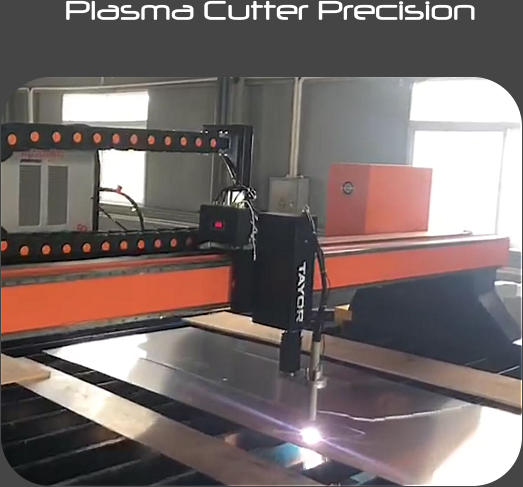

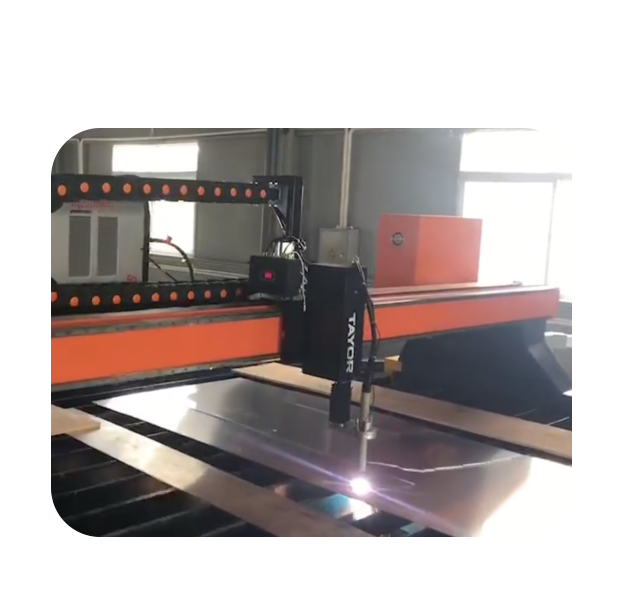

Plasma Cutter Precision

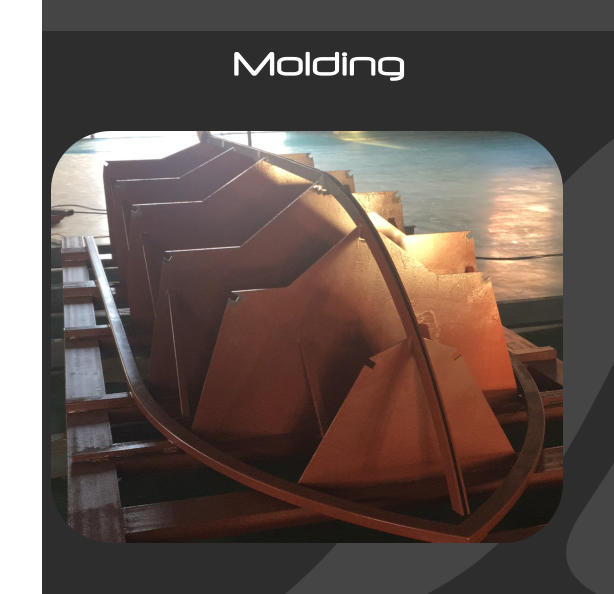

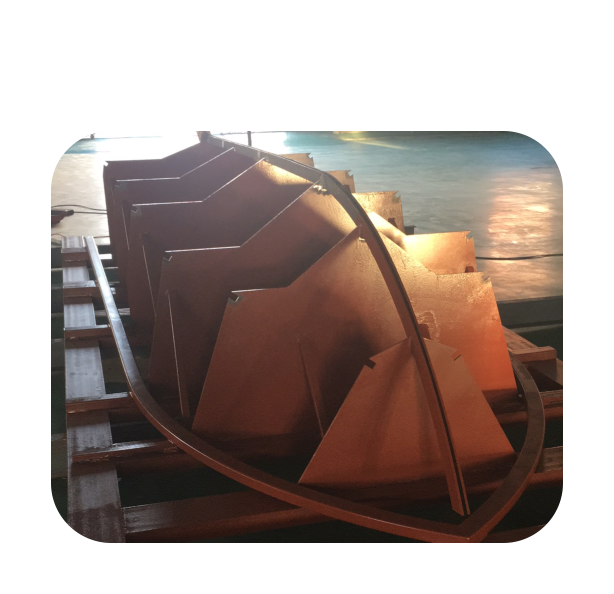

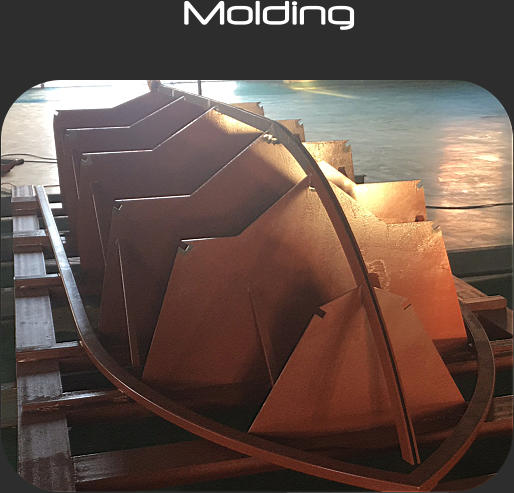

Molding

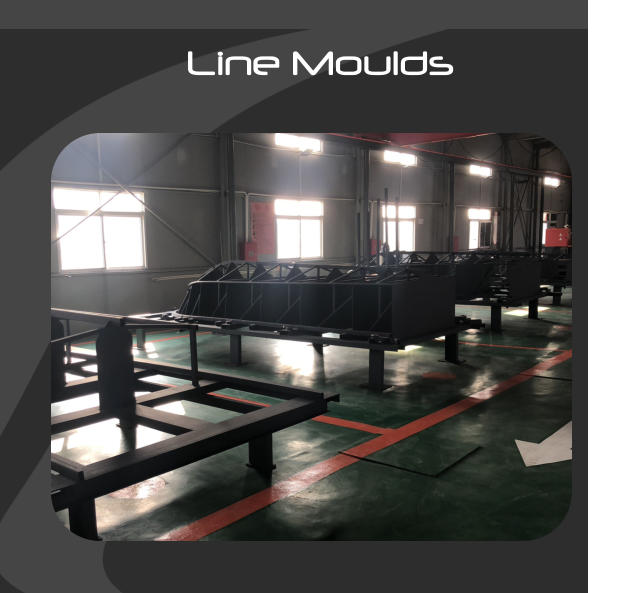

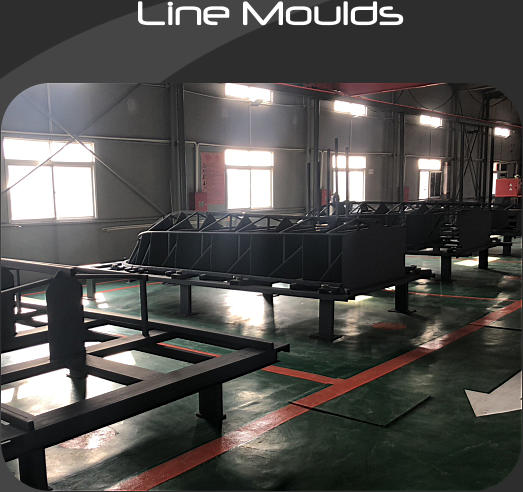

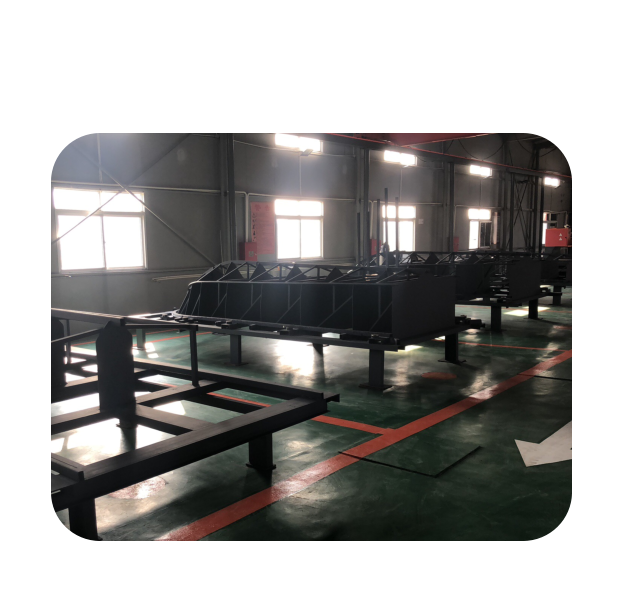

Line Moulds

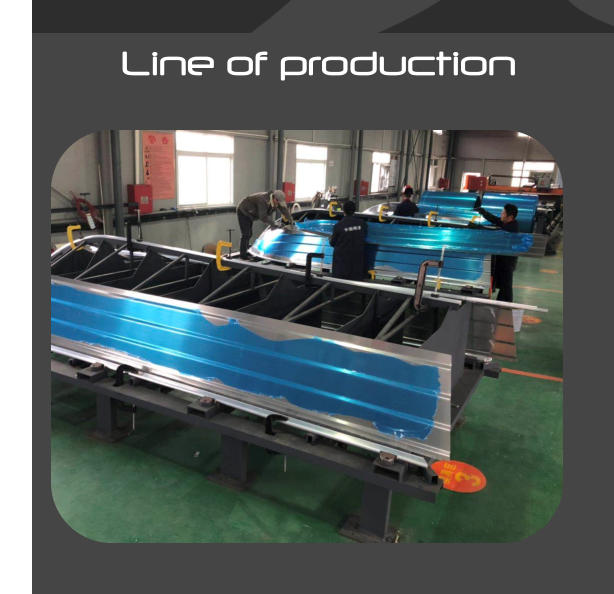

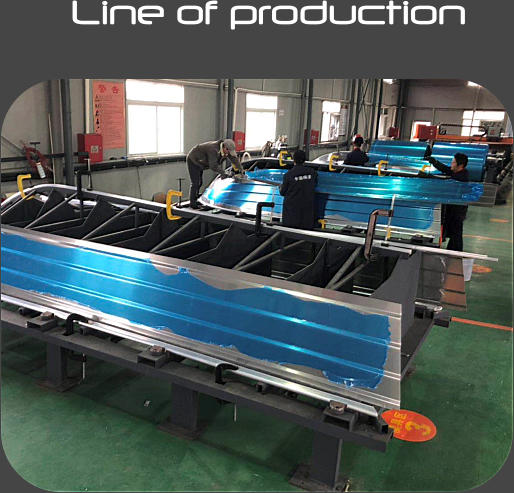

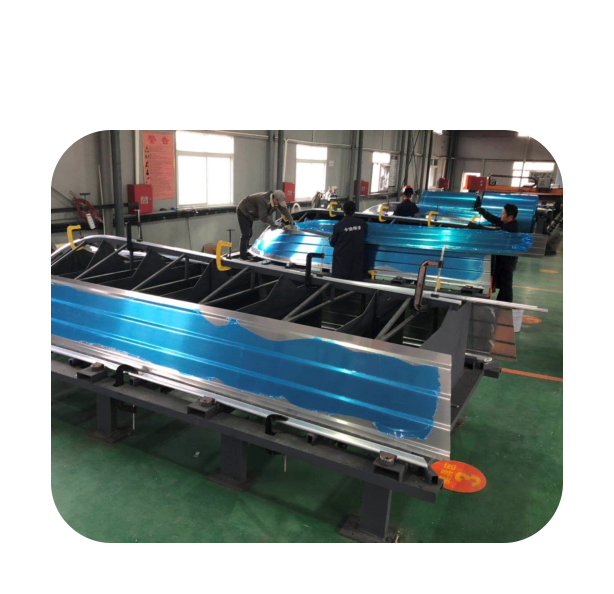

Line of production

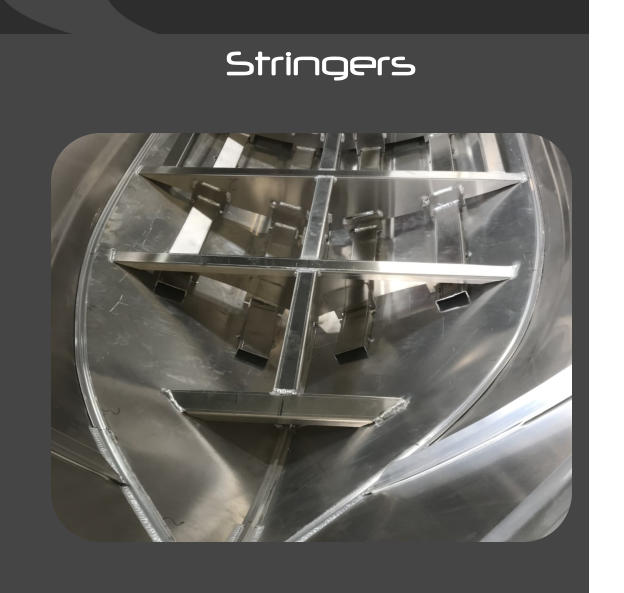

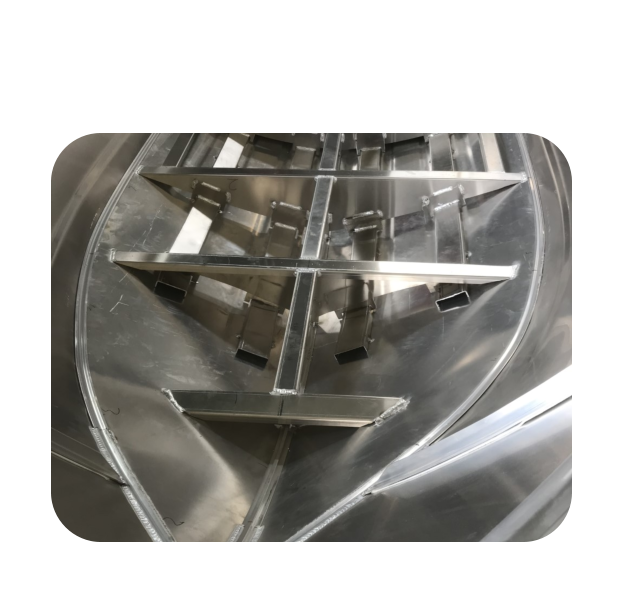

Stringers

DOWNLOAD Aluminium

L E A F L E T

5.4m/2.2m 0.69m/0.51m 377kg (to be finalized) 5 (L) 115HP/84.6kw 900kg 3mm 2mm 3mm CE, D Valid till 30 SEPT 2019
